Description

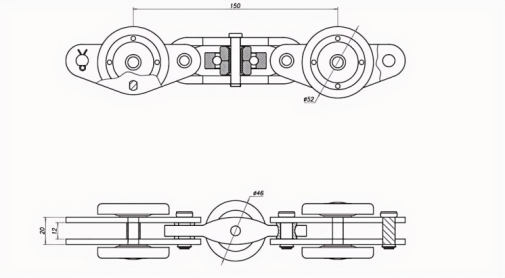

Five-ton Standard Model (UH-5075-S)
Chains specifically designed for suspended conveyors, featuring large angle bending capabilities for ease of installation and suitable for general applications.

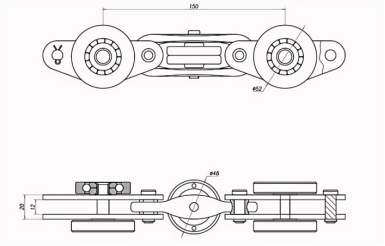

Five-ton Heavy-Duty Horizontal Wheel chain (UH-5075-HH)
Standard horizontal wheels are upgraded to load-bearing models to enhance their load capacity and wear resistance, thereby extending their service life. These are suitable for production environments with multiple bends or higher temperatures.

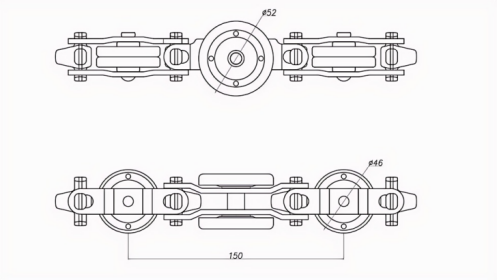

Five-ton Heavy-Duty Vertical Wheel chain (UH-5075-HV)
By upgrading the vertical wheels to load-bearing types, the resistance generated when the chain passes through the lifting bend is reduced, enhancing its load capacity and wear resistance. This is suitable for production environments that involve frequent extension and retraction or higher temperatures.

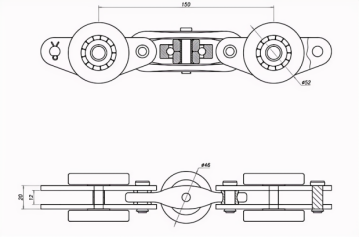

Five-ton Extra Heavy-Duty chain (UH-5075-HA)
By upgrading both the horizontal and vertical wheels to load-bearing types, the chain's load capacity and wearing resistance is optimized to be the best in its class. This makes it suitable for production environments with very complex routing, heavier suspended loads, and higher temperatures.

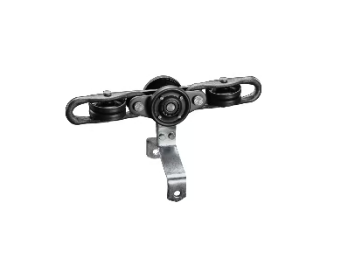

Five-ton cowhide chain
This type of chain is a special chain manufactured for manufacturers who produce light and small parts. Its structural feature is the installation of fixed lifting plates on the basis of a standard chain. By further equipping it with lifting devices that are compatible with the products, it can complete all required tasks. The spacing of the lifting devices is available in different specifications such as 150mm, 300mm, 450mm, etc.
Parameter
|
Chain model Project |
UH-5075-S |
UH-5075-HH |
UH-5075-HV |
UH-5075-HA |
|
Suspension spacing (mm) |
150+(150×N) |
150+(150×N) |
150+(150×N) |
150+(150×N) |
|
Chain self-weight (kg/m) |
4.2 |
4.58 |
4.83 |
5.3 |
|
Single lifting weight |
35 |
40 |
45 |
50 |
|
Allowable tensile force of chain |
30 |
30 |
30 |
30 |
|
Breaking tensile force of chain |
55 |
55 |
55 |
55 |
|
Operating temperature (℃) |
250 |
250 |
250 |
250 |
