Hangzhou Ocean Industry Co., Ltd. is one of the leading manufacturers and suppliers of ge type couplings in China. Welcome to wholesale bulk durable industrial chains and power transmission parts made in China here from our factory. All customized products are with high quality and competitive price.

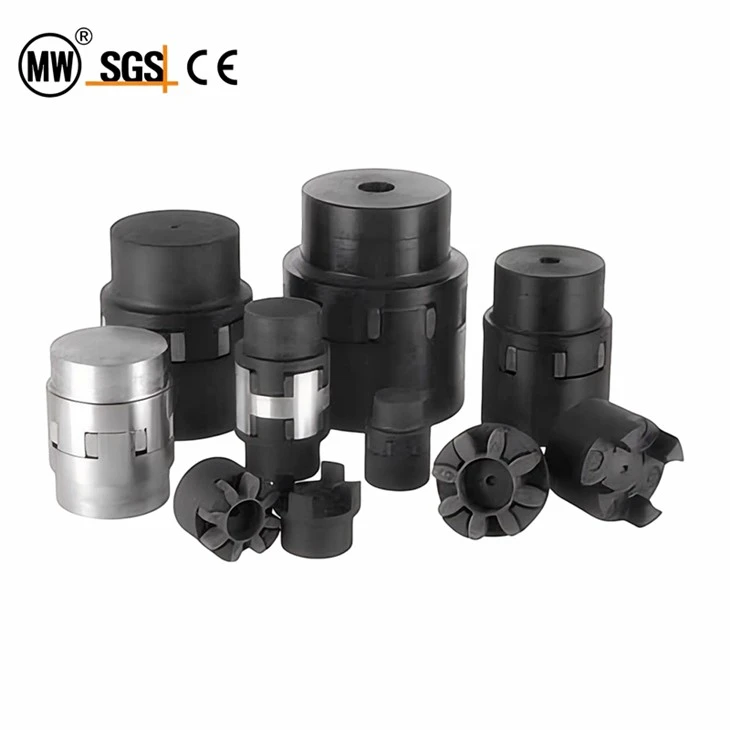

GE Type Couplings are highly flexible couplings widely used in various mechanical equipment and hydraulic systems.
Its main features include: GE Type Couplings can flexibly transmit torque without maintenance; The product is designed with a failure rate protection function to ensure that equipment will not be damaged in the event of a malfunction; Couplings have good vibration absorption capacity, which can reduce noise and wear caused by vibration. Easy to install, installation can be completed by axial insertion, and maintenance is also relatively convenient. Suitable for all types of mechanical and hydraulic equipment, capable of handling temperatures ranging from -40 to+100 degrees Celsius; This coupling can withstand a static torque of up to 270000 Nm and has multiple sizes and parameter options to meet different application requirements. There are shock absorbers that can effectively compensate for axial, radial, and angular deviations, improving the overall stability of the system.
In summary, GE Type Couplings are an ideal choice for industrial applications due to their outstanding performance and flexible design.
Parameter
Product range:
| Standards | Series Type | Size Range |
| ANSI/DIN | GE for AL | GE19-GE38 |
| GE for Steel | GE19-GE90 | |
| GE for GG25 | GE38-GE90 | |
| GE for GGG40 | GE100-GE180 | |
| GE Rubber Gasket | GE19-GE180 |
Note:All items are in pilot bore,Finshed bore can be provided according to customers' requirements
ANSI
GE for AL
| Material:AL | |||||||||||||||||
| Catalog | Part | Elastomer Rating Moment | Collectivity Size(lnch) | Moment of inertia (lbin²) | G (Lbs) | ||||||||||||
| Yellow ft-lbs |
Red ft-lbs |
Moment of inertia lbin² | Bore (d) | L | z | E | b | S | N | DH | D.D1 | dH | |||||
| Pilot | Max | ||||||||||||||||
| GE-14 | 1a | 5.53 | 9.22 | 0.0014 | - | 5/8 | 1.38 | 0.43 | 0.51 | 3/8 | 0.06 | 0 | 13/16 | 13/16 | 3/8 | 0.0085 | 0.044 |
| GE-19 | 1 | 7.37 | 12.50 | 0.0102 | - | 3/4 | 2.6 | 0.98 | 0.63 | 1/2 | 0.08 | 3/4 | 15/8 | 11/4 | 11/16 | 0.0358 | 0.119 |
| 1a | - | 15/16 | 15/8 | 0.063 | 0.145 | ||||||||||||
| GE-24 | 1 | 25.80 | 44.25 | 0.0341 | - | 15/16 | 3.07 | 1.18 | 0.71 | 9/16 | 0.08 | 15/16 | 23/16 | 15/8 | 11/16 | 0.126 | 0.242 |
| 1a | - | 11/8 | 23/16 | 0.276 | 0.352 | ||||||||||||
| GE-28 | 1 | 70.10 | 118.08 | 0.0682 | - | 11/8 | 3.54 | 1.38 | 0.79 | 5/8 | 0.1 | 11/8 | 25/8 | 17/8 | 13/16 | 0.307 | 0.396 |
| 1a | - | 11/8 | 25/8 | 0.634 | 0.561 | ||||||||||||
Order Form
| GE-24 | AL | Yellow | 1 | 3/8 | 1a | 5/8 |
| GE-24 | AL | Yellow | 1 | - | 1 | - |
| Coupling size | Material | Spider | Hub Design | Finished Bore | Hub Design | Finished Bore |
Note:All items are in pilot bore,Finshed bore can be provided according to customers' requirements
GE for Steel
| Catalog | Part | Elastomer Rating Moment | Collectivity Size(mm) | Moment of Inertia Lb.in² |
Wt lbs |
||||||||||||
| Yellow ft-lbs |
Red ft-lIbs |
Moment of Inertia Lb.in² | Bore (d) | L | l1,l2 | E | b | S | N | Du | D,D | d | |||||
| Pilot | Max | ||||||||||||||||
| GE-19 | 1a | 7.37 | 12.50 | 0.0102 | - | 1 | 2.60 | 0.98 | 0.63 | 1/2 | 0.08 | - | 19/16 | 19/16 | 11/16 | 0.164 | 0.39 |
| 1b | 3.54 | 1.46 | 0.232 | 0.49 | |||||||||||||
| GE-24 | 1a | 25.80 | 44.25 | 0.0341 | - | 13/8 | 3.07 | 1.18 | 0.71 | 9/16 | 0.08 | - | 23/16 | 23/16 | 11/16 | 0.678 | 0.79 |
| 1b | 4.65 | 1.97 | 1.078 | 1.26 | |||||||||||||
| GE-28 | 1a | 70.10 | 118.08 | 0.0682 | - | 19/16 | 3.54 | 1.38 | 0.79 | 5/8 | 0.10 | - | 29/16 | 29/16 | 13/16 | 1.562 | 1.37 |
| 1b | 5.51 | 2.36 | 2.558 | 2.19 | |||||||||||||
| GE-38 | 1 | 140.00 | 240.00 | 0.17 | - | 17/8 | 4.49 | 1.77 | 0.94 | 3/4 | 0.12 | 11/16 | 31/8 | 23/4 | 11/4 | 3.458 | 2.46 |
| 1b | 6.46 | 2.76 | - | 31/8 | 6.854 | 3.94 | |||||||||||
| GE-42 | 1 | 195.00 | 332.00 | 0.3410 | - | 21/8 | 4.96 | 1.97 | 13/16 | 0.12 | 11/8 | 33/4 | 33/5 | 113/16 | 8.400 | 3.34 | |
| 1b | 6.93 | 2.95 | - | 33/4 | 15.260 | 6.25 | |||||||||||
| GE-48 | 1 | 229.00 | 387.00 | 0.6820 | - | 27/16 | 5.51 | 2.20 | 1.02 | 13/16 | 0.14 | 11/4 | 41/8 | 33/4 | 2 | 13.787 | 4.60 |
| 1b | 7.40 | 3.15 | - | 41/8 | 23.830 | 8.67 | |||||||||||
| GE-55 | 1 | 302.00 | 505.00 | 1.0230 | - | 215/16 | 6.30 | 2.56 | 1.18 | 7/8 | 0.16 | 17/16 | 43/4 | 41/16 | 23/8 | 27.160 | 6.96 |
| 1b | 8.20 | 3.54 | - | 43/4 | 44.610 | 13.06 | |||||||||||
| GE-65 | 1 | 461.00 | 693.00 | 1.7050 | - | 31/8 | 7.28 | 2.95 | 1.38 | 1 | 0.18 | 17/8 | 55/16 | 412 | 211/16 | 43.430 | 10.62 |
| 1b | 9.28 | 3.04 | - | 55/16 | 81.740 | 19.08 | |||||||||||
| GE-75 | 1 | 944.00 | 1416.00 | 6.8200 | - | 33/4 | 8.27 | 3.35 | 1.57 | 13/16 | 0.20 | 21/16 | 61/4 | 55/16 | 31/8 | 94.290 | 16.75 |
| 1b | 10.24 | 4.33 | - | 61/4 | 176.480 | 30.0 | |||||||||||
| GE-90 | 1 | 1770.00 | 2655.00 | 13.6000 | - | 45/16 | 9.365 | 3.94 | 1.77 | 13/8 | 0.22 | 27/16 | 77/8 | 61/4 | 315/16 | 262.190 | 28.7 |
| 1b | 11.61 | 4.92 | - | 77/8 | 510.020 | 53.55 | |||||||||||
Order Form
| GE-24 | Steel | Red | 1a | 3/8 | 1b | 3/4 |
| GE-24 | Steel | Yellow | 1a | - | 1a | - |
| Coupling size | Material | Spider | Hub design | Finish bore | Hub design | Finish bore |
Note:All items are in pilot bore,Finshed bore can be provided according to customers' requirements
GE for GG25
| Catalog | Part | Elastomer Rating Moment | Collectivity Size(mm) | Moment of Inertia Lb.in² | Wt Lbs |
||||||||||||
| Yellow ft-lbs |
Red ft-lbs |
Moment of Inertia Lb.in² |
Bore (d) | L | l1.12 | E | b | S | N | DH | D.D1 | dH | |||||
| Pilot | Max | ||||||||||||||||
| GE-38 | 1 | 140 | 240 | 0.170 | 3/8 | 45598 | 4.49 | 1.77 | 0.95 | 11/16 | 0.12 | 17/16 | 31/8 | 29/16 | 11/2 | 2.90 | 2.16 |
| 1a | 3/4 | 13/4 | 31/16 | 4.33 | 2.51 | ||||||||||||
| 1b | 6.46 | 2.76 | 27/16 | 6.62 | 3.70 | ||||||||||||
| GE-42 | 1 | 195 | 332 | 0.341 | 3/8 | 15/8 | 4.96 | 1.97 | 1.02 | 3/4 | 0.12 | 19/16 | 33/4 | 3 | 113/16 | 6.12 | 3.34 |
| 1a | 11/8 | 21/8 | 311/16 | 10.23 | 4.03 | ||||||||||||
| 1b | 6.93 | 2.95 | 29/16 | 14.70 | 5.74 | ||||||||||||
| GE-48 | 1 | 229 | 387 | 0.682 | 1/2 | 17/8 | 5.51 | 2.20 | 1.10 | 13/16 | 0.14 | 13/4 | 41/8 | 33/8 | 2 | 10.37 | 4.60 |
| 1a | 11/8 | 23/8 | 41/16 | 16.90 | 5.46 | ||||||||||||
| 1b | 7.40 | 3.15 | 23/4 | 23.39 | 7.52 | ||||||||||||
| GE-55 | 1 | 302 | 505 | 1.023 | 5/8 | 21/8 | 6.30 | 2.56 | 1.18 | 7/8 | 0.16 | 21/16 | 43/4 | 37/8 | 23/8 | 20.95 | 6.96 |
| 1b | 19/16 | 23/4 | 45/8 | 32.25 | 11.13 | ||||||||||||
| GE-65 | 1 | 461 | 693 | 1.705 | 3/4 | 29/16 | 7.28 | 2.95 | 1.38 | - | 0.18 | 115/16 | 55/16 | 41/2 | 211/16 | 47.96 | 10.62 |
| GE-75 | 1 | 944 | 1416 | 6.82 | 1 | 27/8 | 8.27 | 3.35 | 1.59 | 13/8 | 0.20 | 21/16 | 61/4 | 55/16 | 35/8 | 105.24 | 16.75 |
| GE-90 | 1 | 1770 | 2655 | 13.6 | 13/8 | 31/2 | 9.65 | 3.94 | 1.77 | 15/16 | 0.22 | 27/16 | 77/8 | 65/16 | 315/16 | 283.29 | 28.70 |
Order Form
| GE-42 | GG25 | Red | 1 | 3/8 | 1a | 11/8 |
| GE-42 | GG25 | Yellow | 1 | 3/8 | 1 | 11/8 |
| Coupling Size | Material | Spider | Hub Design | Finish Bore | Hub Design | Finish Bore |
Note:All items are in pilot bore,Finshed bore can be provided according to customers' requirements
GE for GGG40
| Catalog | Part | Elastomer Rating Moment | Collectivity Size(mm) | Moment of inertia Lb.in² | wt Lbs |
||||||||||||
| Yellow ft-lbs | Red ft-lbs |
Moment of Inertia Lb.in² | Bore (d) | L | L .1 | E | b | S | N | DH | D | dH | |||||
| Pilot | Max | ||||||||||||||||
| GE-100 | 1 | 2434 | 3651 | 24 | 13/4 | 41/2 | 10.63 | 4.33 | 1.97 | 11/8 | 0.24 | 31/2 | 87/8 | 71/16 | 47/16 | 394 | 35.9 |
| GE-110 | 1 | 3540 | 5310 | 51 | 21/4 | 5 | 11.61 | 4.72 | 2.17 | 15/8 | 0.26 | 33/4 | 10 | 77/8 | 5 | 707 | 51.2 |
| GE-125 | 1 | 4904 | 7375 | 85 | 21/4 | 53/4 | 13.39 | 5.51 | 2.36 | 113/16 | 0.28 | 47/16 | 117/16 | 9 | 53/4 | 1388 | 76.2 |
| GE-140 | 1 | 6306 | 9440 | 136 | 21/4 | 61/4 | 14.76 | 6.10 | 2.56 | 115/16 | 0.30 | 47/8 | 129/16 | 10 | 61/2 | 2520 | 103.4 |
| GE-160 | 1 | 9440 | 14160 | 273 | 3 | 71/4 | 16.73 | 6.89 | 2.95 | 21/4 | 0.36 | 51/2 | 149/16 | 117/16 | 71/2 | 4924 | 105.5 |
| GE-180 | 1 | 13754 | 20650 | 590 | 31/8 | 77/8 | 18.20 | 7.28 | 3.35 | 21/2 | 0.43 | 61/8 | 161/2 | 123/4 | 85/8 | 9008 | 231.3 |
Order Form
| GE-125 | GGG40 | Yellow | 1 | 21/8 | 1 | 25/8 |
| Coupling size | Material | Spider | Hub design | Finish bore | Hub design | Finish bore |
DIN
GE for AL
| Catalog | art | Elastomer Rating Moment | Collectivity Size(mm) | Moment of inertia (kg.cm²) |
G (kg) |
||||||||||||
| Yellow (Nm) | Red (Nm) | Moment of inertia (kg.cm²) | Bore (d) |
L | l1,l2 | E | b | S | N | DH | D,D1 | dh | |||||
| Pilot | Max | ||||||||||||||||
| GE-14 | 1a | 7.5 | 12.5 | 0.004 | - | 16 | 35 | 11 | 13 | 10 | 1.5 | 0 | 30 | 30 | 10 | 0.025 | 0.020 |
| GE-19 | - | 10 | 17 | 0.030 | - | 19 | 66 | 25 | 16 | 12 | 2 | 20 | 41 | 32 | 18 | 0.105 | 0.054 |
| 1a | - | 24 | 41 | 0.185 | 0.066 | ||||||||||||
| GE-24 | 1 | 35 | 60 | 0.100 | - | 24 | 78 | 30 | 18 | 14 | 2 | 24 | 56 | 40 | 27 | 0.370 | 0.110 |
| 1a | - | 28 | 56 | 0.810 | 0.160 | ||||||||||||
| GE-28 | - | 95 | 160 | 0.200 | - | 28 | 90 | 35 | 20 | 15 | 2.5 | 28 | 67 | 48 | 30 | 0.900 | 0.180 |
| 1a | - | 38 | 67 | 1.860 | 0.255 | ||||||||||||
GE for Steel
| Catalog | Part | Elastomer Rating Moment | Collectivity Size(mm) | Moment of inertia (kg.cm²) | G (kg) |
||||||||||||
| Yellow (Nm) | Red (Nm) | Moment of inertia (kg.cm²) | Bore (d) | L | l1,l2 | E | b | S | N | DH | D,D1 | dH | |||||
| Pilot | Max | ||||||||||||||||
| GE-19 | 1a | 10 | 17 | 0.03 | - | 25 | 66 | 25 | 16 | 12 | 2 | - | 40 | 40 | 18 | 0.48 | 0.18 |
| 1b | 90 | 37 | 0.68 | 0.23 | |||||||||||||
| GE-24 | 1a | 35 | 60 | 0.1 | - | 35 | 78 | 30 | 18 | 14 | 2 | - | 55 | 55 | 27 | 1.99 | 0.37 |
| 1b | 118 | 50 | 3.16 | 0.59 | |||||||||||||
| GE-28 | 1a | 95 | 160 | 0.2 | - | 40 | 90 | 35 | 20 | 15 | 2.5 | - | 65 | 65 | 30 | 4.58 | 0.64 |
| 1b | 140 | 60 | 7.50 | 1.02 | |||||||||||||
| GE-38 | 1 | 190 | 325 | 0.5 | - | 48 | 114 | 45 | 24 | 18 | 3 | 27 | 80 | 70 | 38 | 10.14 | 1.01 |
| 1b | 164 | 70 | - | 80 | 20.10 | 1.84 | |||||||||||
| GE-42 | 1 | 265 | 450 | 1.0 | - | 55 | 126 | 50 | 26 | 20 | 3 | 28 | 95 | 85 | 46 | 24.63 | 1.56 |
| 1b | 176 | 75 | - | 95 | 44.75 | 2.92 | |||||||||||
| GE-48 | 1 | 310 | 525 | 2.0 | - | 62 | 140 | 56 | 28 | 21 | 3.5 | 32 | 105 | 95 | 51 | 40.43 | 2.15 |
| 1b | 188 | 80 | - | 105 | 69.88 | 4.05 | |||||||||||
| GE-55 | 1 | 410 | 685 | 3.0 | - | 74 | 160 | 65 | 30 | 22 | 4 | 37 | 120 | 110 | 60 | 79.64 | 3.25 |
| 1b | 210 | 90 | - | 120 | 130.82 | 6.10 | |||||||||||
| GE-65 | 1 | 625 | 940 | 5.0 | - | 80 | 185 | 75 | 35 | 26 | 4.5 | 47 | 135 | 115 | 68 | 127.38 | 4.96 |
| 1b | 235 | 100 | - | 135 | 239.72 | 8.91 | |||||||||||
| GE-75 | 1 | 1280 | 1920 | 20.0 | - | 95 | 210 | 85 | 40 | 30 | 5 | 53 | 160 | 135 | 80 | 276.50 | 7.82 |
| 1b | 260 | 110 | - | 160 | 517.55 | 14.01 | |||||||||||
| GE-90 | 1 | 2400 | 3600 | 40.0 | - | 110 | 245 | 100 | 45 | 34 | 5.5 | 62 | 200 | 160 | 100 | 768.89 | 13.40 |
| 1b | 295 | 125 | - | 200 | 1495.65 | 25.01 | |||||||||||
GE for GG25
| Catalog | Part | Elastomer Rating Moment | Collectivity Size(mm) | Moment of inertia (kg.cm²) |
G (kg) |
||||||||||||
| Yellow (Nm) | Red (Nm) | Moment of inertia (kg.cm²) | Bore (d) | L | 1,1₂ | E | b | s | N | DH | D,D1 | dH | |||||
| Pilot | Max | ||||||||||||||||
| GE-38 | 1 | 1 90 | 325 | 0.50 | 10 | 38 | 114 | 45 | 24 | 18 | 3 | 37 | 80 | 66 | 38 | 8.51 | 1.01 |
| 1a | 20 | 45 | 78 | 12.70 | 1.17 | ||||||||||||
| 1b | 164 | 70 | 62 | 19.4 | 1.73 | ||||||||||||
| GE-42 | 1 | 265 | 450 | 1.00 | 10 | 42 | 126 | 50 | 26 | 20 | 3 | 40 | 95 | 75 | 46 | 17.95 | 1.56 |
| 1a | 30 | 55 | 94 | 30.00 | 1.88 | ||||||||||||
| 1b | 176 | 75 | 65 | 43.10 | 2.68 | ||||||||||||
| GE-48 | 1 | 310 | 525 | 2.00 | 12 | 48 | 140 | 56 | 28 | 21 | 3.5 | 45 | 105 | 85 | 51 | 30.41 | 2.15 |
| 1a | 30 | 60 | 104 | 49.56 | 2.55 | ||||||||||||
| 1b | 188 | 80 | 69 | 68.58 | 3.51 | ||||||||||||
| GE-55 | 1 | 410 | 685 | 3.00 | 15 | 55 | 160 | 65 | 30 | 22 | 4 | 52 | 120 | 98 | 60 | 61.44 | 3.25 |
| 1b | 40 | 70 | 118 | 94.56 | 5.20 | ||||||||||||
| GE-65 | 1 | 625 | 940 | 5.00 | 20 | 65 | 185 | 75 | 35 | 26 | 4.5 | 47 | 135 | 115 | 68 | 140.65 | 4.96 |
| GE-75 | 1 | 1280 | 1920 | 20.00 | 25 | 75 | 210 | 85 | 40 | 30 | 5 | 53 | 160 | 135 | 80 | 308.92 | 7.82 |
| GE-90 | 1 | 2400 | 3600 | 40.00 | 35 | 90 | 245 | 100 | 45 | 34 | 5.5 | 62 | 200 | 160 | 100 | 830.75 | 13.4 |
GE for GGG40
| Catalog | Elastomer Rating Moment | Collectivity Size(mm) | Moment of inertia (kg.cm²) | ||||||||||||||
| Part | Yellow (Nm) | Red (Nm) | Moment of Inertia (kg.cm²) | Bore (d) | L | L | E | b | 5 | N | DH | D | dH | ||||
| GE-100 | 1 | 3300 | 4950 | 70 | 45 | 115 | 270 | 110 | 50 | 38 | 6 | 89 | 225 | 180 | 113 | 1157 | 16.8 |
| GE-110 | 1 | 4800 | 7200 | 150 | 55 | 125 | 295 | 120 | 55 | 42 | 6.5 | 96 | 255 | 200 | 127 | 2073 | 23.9 |
| GE-125 | 1 | 6650 | 10000 | 250 | 55 | 145 | 340 | 140 | 60 | 46 | 7 | 112 | 290 | 230 | 147 | 4071 | 35.6 |
| GE-140 | 1 | 8550 | 12800 | 400 | 55 | 160 | 375 | 155 | 65 | 50 | 7.5 | 124 | 320 | 255 | 165 | 7391 | 48.3 |
| GE-160 | 1 | 12800 | 19200 | 800 | 75 | 185 | 425 | 175 | 75 | 57 | 9 | 140 | 370 | 290 | 190 | 14441 | 70.3 |
| GE-180 | 1 | 18650 | 28000 | 1730 | 80 | 200 | 475 | 185 | 85 | 64 | 11 | 156 | 420 | 325 | 220 | 26417 | 108.0 |
