Hangzhou Ocean Industry Co., Ltd. is one of the leading manufacturers and suppliers of other(conveyor chains) in China. Welcome to wholesale bulk durable industrial chains and power transmission parts made in China here from our factory. All customized products are with high quality and competitive price.
Hangzhou Ocean Industry CO.,Ltd. are professional manufacturer and most of our goods are exported to Europe since 2005.
Our special attachments and agricultural chains fit all the harshfarm workingconditions. They are made of wear resistant alloysteel with an anti-corrosioncoating and are compatible withcustom K, F, CA attachments for harvesters,tractors and balers.High tensile strength for longer service life, flexible OEM &ODM for global agricultural machinery wholesalers.
Parameter
Most of our OEM customer send us drawing and we will produce as per their drawing. You can send us drawing by e-mail too then our engineer will offer help. If no drawing, sample also OK. Catalogue also OK.
Most of Ocean Conveyor chains are exported to Europe since 2005. Most of Ocean OEM customers send drawings and Ocean produce as per their drawings, if you do not have drawing, Ocean can also produce as per your sample.
Drawings and parameter data
Roller chains for textile machinery
| Chain No. | Pitch | Roller diameter |
Width between inner plates |
Pin diameter |
Pin length |
Attachment dimension |
Transverse pitch |
Tensile strength |
Weight per meter |
|||
| P | d1 max |
b1 min |
d2 max |
d3 max |
L1 max |
L2 max |
L3 max |
F | Pt | Q min |
q | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kg/m | |
| 06BF20 | 9.525 | 6.35 | 4.6 | 3.28 | 4.45 | 43.75 | 44.85 | 52.4 | 13.0 | 15.0 | 24.9/5682 | 2.77 |

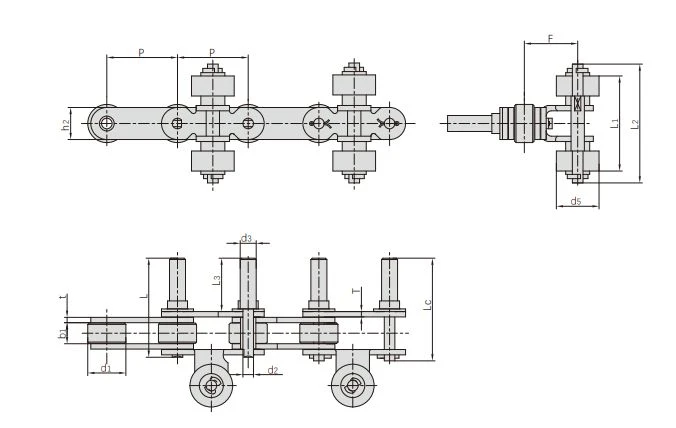

Conveyor chains for spraying equipment
| Chain No. | Pitch | Roller diameter |
Width between inner plates |
Pin diameter |
Pin length |
Plate dimension |
Attachment dimension |
Tensile strength |
Weight per meter |
|||||||
| P | d1 max |
b1 min |
d2 max |
d3 max |
L3 | L max |
Lc max |
h2 max |
t/T max |
F | d5 | L1 | L2 | Q min |
q | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kg/m | |
| P38.1F28 | 38.10 | 22.23 | 12.70 | 7.92 | 10.0 | 64.5 | 101.0 | - | 20.0 | 4.0 | 30.7 | 30.0 | 76.5 | 87.2 | 50.00/11240 | 4.06 |
| P42.5F2 | 42.50 | 25.40 | 25.22 | 12.70 | 12.0 | 69.0 | 121.4 | 126.0 | 41.0 | 5.6 | 45.2 | 32.0 | 93.0 | 109.0 | 169.00/37991 | 14.25 |
| P53F2 | 53.00 | 28.58 | 15.75 | 7.92 | 12.0 | 60.0 | 94.5 | 98.0 | 24.0 | 4.0 | 40.0 | 32.0 | 74.0 | 89.0 | 62.36/14018 | 7.60 |
FAQ
Q: Can I customize the size of these conveyor chains?
A: Yes, customized dimensions are available upon request.
Q: Are different chain materials optional?
A: Multiple materials can be chosen for different environments.
Q:What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
Q:Are you trading company or manufacturer ?
A: We are factory.
