Hangzhou Ocean Industry Co., Ltd. is one of the leading manufacturers and suppliers of tobacco machinery conveyor chains in China. Welcome to wholesale bulk durable industrial chains and power transmission parts made in China here from our factory. All customized products are with high quality and competitive price.
Hangzhou Ocean Industry CO.,Ltd. are professional manufacturer and most of our goods are exported to Europe since 2005.
Our special attachments and agricultural chains fit all the harshfarm workingconditions. They are made of wear resistant alloysteel with an anti-corrosioncoating and are compatible withcustom K, F, CA attachments for harvesters,tractors and balers.High tensile strength for longer service life, flexible OEM &ODM for global agricultural machinery wholesalers.
Parameter
Most of our OEM customer send us drawing and we will produce as per their drawing. You can send us drawing by e-mail too then our engineer will offer help. If no drawing, sample also OK. Catalogue also OK.
Drawings and parameter data
Tobacco mechanical conveying chain mainly includes redrying chain, storage cabinet chain and feeder chain in cigarette manufacturing equipment.
Through optimized design, reasonable material selection and precise manufacturing.the product has the characteristics of environment resistance, wear resistance, stable operation and high reliability, and meets the operation requirements of tobacco machinery with complex working environment, high quality, high efficiency, safety and reliability
Widely used in tobacco production, feed drying and other fields.
Tobacco conveyor chains

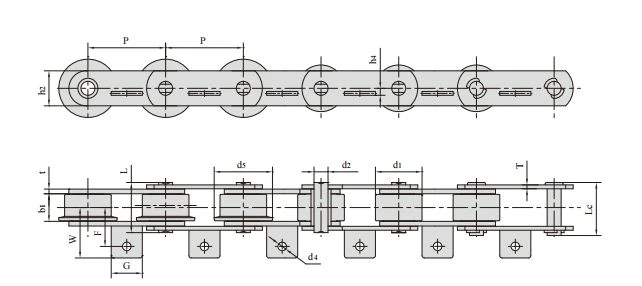

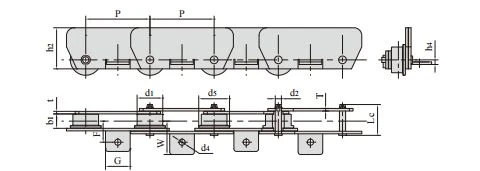

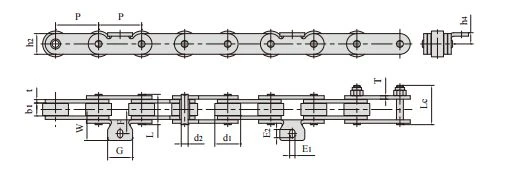

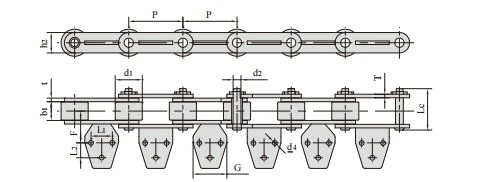

| Chain No. | G | L | F | G1 | L1 | W1 | E1 | E2 | d4 |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | |
| P200F74 | 167.0 | 130.0 | 41.5 | 60.0 | 30.0 | 23.0 | 8.0 | 12.0 | 8.0 |
| P200F132 | 168.0 | 127.0 | 44.3 | 63.0 | 27.0 | 26.0 | 7.0 | 7.0 | 8.0 |
| P200F156 | 167.0 | 130.0 | 41.2 | 60.0 | 30.0 | 23.0 | 8.0 | 12.0 | 8.0 |
| P200F177 | 170.0 | 127.0 | 48.0 | 62.0 | 27.0 | 26.0 | 7.0 | 7.0 | 7.0 |
| P203.2F2 | 170.0 | 127.0 | 39.0 | 62.0 | 27.0 | 24.0 | 6.8 | 10.8 | 6.5 |
| Chain No. | Pitch | Roller diameter |
Width between inner plates |
Pin diameter |
Pin length |
Plate depth |
Plate thickness |
Tensile strength |
Average tensile strength |
Weight per meter |
| P | d1 max |
b1 min |
d2 max |
Lc max |
h2 max |
T max |
Q min |
Q0 | q | |
| mm | mm | mm | mm | mm | mm | mm | kN/lbf | kN | kg/m | |
| P200F74 | 200.0 | 50.0 | 24.0 | 11.9 | 62.0 | 30.0 | 6.0 | 100/22480 | 110.0 | 6.1 |
| P200F132 | 200.0 | 50.0 | 25.5 | 14.0 | 63.0 | 35.0 | 6.0 | 130/29225 | 143.0 | 7.1 |
| P200F156 | 200.0 | 50.0 | 23.0 | 11.9 | 62.0 | 32.0 | 6.3 | 100/22480 | 110.0 | 6.4 |
| P200F177 | 200.0 | 60.0 | 26.0 | 18.0 | 75.0 | 45.0 | 8.0 | 230/51704 | 241.5 | 11.8 |
| P203.2F2 | 203.2 | 50.5 | 24.0 | 11.0 | 64.6 | 32.0 | 6.0 | 120/26977 | 130.0 | 6.2 |
| Chain No. | G | F1 | F2 | W1 | W | d4 | d5 |
| mm | mm | mm | mm | mm | mm | mm | |
| C2082F35 | 30.0 | 33.0 | 32.0 | 45.7 | 86.7 | 8.8 | 24.0 |
| C2082HF70 | 30.0 | 34.0 | 32.0 | 44.0 | 85.0 | 8.6 | 24.0 |
| C2082F78 | 30.0 | 28.5 | 32.0 | 45.7 | 86.7 | 8.8 | 24.0 |
| Chain No. | Pitch | Roller diameter |
Width between inner plates |
Pin diameter |
Pin length |
Plate depth |
Plate thickness |
Tensile strength |
Average tensile strength |
Weight per meter |
|
| P | d1 max |
b1 min |
d2 max |
L max |
Lc max |
h2 max |
T max |
Q min |
Q0 | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kN | kg/m | |
| C2082F35 | 50.8 | 28.58 | 15.75 | 7.92 | 32.7 | 36.5 | 24.0 | 3.25 | 55.6/12500 | 60.0 | 3.37 |
| C2082HF70 | 50.8 | 28.58 | 15.75 | 7.92 | 36.2 | 38.9 | 24.0 | 4.00 | 55.6/12500 | 60.0 | 3.31 |
| C2082F78 | 50.8 | 28.58 | 15.75 | 7.92 | 32.7 | 36.5 | 24.0 | 3.25 | 55.6/12500 | 60.0 | 3.37 |
| Chain No. | G | L | F | W | h4 | d4 |
| mm | mm | mm | mm | mm | mm | |
| P76.2F30 | 25.0 | 31.8 | 44.5 | 89.8 | 9.0 | 9.7 |
| Chain No. | Pitch | Roller diameter |
Width between inner plates |
Pin diameter |
Pin length |
Plate depth |
Plate thickness |
Tensile strength |
Average tensile strength |
Weight per meter |
| P | d1 max |
b1 min |
d2 max |
Lc max |
h2 max |
T max |
Q min |
Q0 | q | |
| mm | mm | mm | mm | mm | mm | mm | kN/lbf | kN | kg/m | |
| P76.2F30 | 76.2 | 38.0 | 24.0 | 11.0 | 55.0 | 28.7 | 5.0 | 75/16860 | 80.0 | 5.67 |
| Chain No. | G | F | W | h4 | E1 | E2 |
| mm | mm | mm | mm | mm | mm | |
| P50F46 | 29.0 | 27.5 | 36.5 | 13.0 | 6.2 | 9.5 |
| Chain No. | Pitch | Roller diameter |
Width between inner plates |
Pin dimension |
Plate depth |
Plate thickness |
Tensile strength |
Average tensile strength |
Weight per meter |
||
| P | d1 max |
b1 min |
d2 max |
L max |
Lc max |
h2 max |
t/T max |
Q min |
Q0 | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kN | kg/m | |
| P50F46 | 50.0 | 30.0 | 14.5 | 8.0 | 35.5 | 45.6 | 24.0 | 4.0 | 50/11240 | 55.0 | 3.73 |
| Chain No. | G | F | W | h4 | d4 |
| mm | mm | mm | mm | mm | |
| P100F74 | 40.0 | 55.00 | 73.0 | 8.0 | 12.0 |
| P100F171 | 40.0 | 55.00 | 73.5 | 10.0 | 12.0 |
| P100F173A1 | 40.0 | 47.25 | 64.3 | 9.5 | 11.0 |
| P100F260A1 | 40.0 | 55.00 | 73.0 | 8.0 | 12.0 |
| P160F104A1 | 50.0 | 64.00 | 99.0 | 15.0 | 13.0 |
| Chain No. | Pitch | Roller diameter |
Width between inner plates |
Pin diameter |
Pin length |
Plate depth |
Plate thickness |
Tensile strength |
Average tensile strength |
Weight per meter |
||
| P | d1 max |
d5 max |
b1 min |
d2 max |
L max |
Lc max |
h2 max |
t/T max |
Q min |
Q0 | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kN | kg/m | |
| P100F74 | 100.0 | 60.0 | - | 34.0 | 18.0 | - | 69.0 | 45.0 | 6.05.0 | 140/31470 | 150.0 | 13.80 |
| P100F171 | 100.0 | 60.0 | - | 35.0 | 18.0 | 65.0 | 69.5 | 41.0 | 6.0/5.0 | 140/31470 | 150.0 | 13.17 |
| P100F173A1 | 100.0 | 60.0 | 75.0 | 36.0 | 18.0 | 65.0 | 70.5 | 45.0 | 6.0/5.0 | 140/31470 | 150.0 | 16.10 |
| P100F260A1 | 100.0 | 60.0 | - | 34.0 | 18.0 | - | 63.0 | 45.0 | 4.0 | 120/26977 | 130.0 | 11.20 |
| P160F104A1 | 160.0 | 80.0 | 96.0 | 48.0 | 25.0 | 95.5 | 102.0 | 65.0 | 10.0/8.0 | 315/70812 | 330.7 | 28.30 |
| Chain No. | G | F | L1 | L2 | d4 |
| mm | mm | mm | mm | mm | |
| P76.2F63A3 | 47.5 | 44.7 | 30.0 | 21.0 | 6.7 |
| Chain No. | Pitch | Roller diameter |
Width between inner plates |
Pin dimension |
Plate depth |
Plate thickness |
Tensile strength |
Average tensile strength |
Weight per meter |
|
| P | d1 max |
b1 min |
d2 max |
Lc max |
h2 max |
t/T max |
Q min |
Q0 | q | |
| mm | mm | mm | mm | mm | mm | mm | kN/lbf | kN | kg/m | |
| P76.2F63A3 | 76.2 | 38.1 | 25.2 | 11.0 | 57.0 | 28.7 | 5.0 | 80/17984 | 88.0 | 7.10 |
| Chain No. | G | F | W | h4 | d4 |
| mm | mm | mm | mm | mm | |
| M80F36A1-F-125 | 48.0 | 41.0 | 65.0 | 9.0 | 12.0 |
| Chain No. | Pitch | Roller diameter |
Width between inner plates |
Pin dimension |
Plate depth |
Plate thickness |
Tensile strength |
Average tensile strength |
Weight per meter |
||
| P | d1 max |
d5 max |
b1 min |
d2 max |
Lc max |
h2 max |
t/T max |
Q min |
Q0 | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kN | kg/m | |
| M80F36A1-F-125 | 125.0 | 50.0 | 60.0 | 28.0 | 12.0 | 60.0 | 80.0 | 5.0 | 80/17984 | 88.0 | 12.50 |
| Chain No. | G | L1 | F | W | h4 | d4 |
| mm | mm | mm | mm | mm | mm | |
| M160F57A2-F-200 | 115.0 | 85.0 | 62.0 | 83.3 | 36.0 | 13.5 |
| Chain No. | Pitch | Roller diameter |
Width between inner plates |
Pin dimension |
Plate depth |
Plate thickness |
Tensile strength |
Average tensile strength |
Weight per meter |
||
| P | d1 max |
d5 max |
b1 min |
d2 max |
Lc max |
h2 max |
t/T max |
Q min |
Q0 | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kN | kg/m | |
| M160F57A2-F-200 | 200.0 | 70.0 | 90.0 | 37.0 | 18.0 | 80.0 | 95.0 | 7.0 | 160/15968 | 172.8 | 18.80 |
| Chain No. | G | F | W | h4 | d4 |
| mm | mm | mm | mm | mm | |
| P200F33 | 90.0 | 79.0 | 136.0 | 21.5 | 14.0 |
| Chain No. | Pitch | Roller diameter |
Width between inner plates |
Pin diameter |
Pin length |
Plate depth |
Plate thickness |
Tensile strength |
Average tensile strength |
Weight per meter |
|
| P | d1 max |
b1 min |
d2 max |
L max |
Lc max |
h2 max |
T max |
Q min |
Q0 | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kN | kg/m | |
| P200F33 | 200.0 | 100.0 | 48.0 | 30.0 | 107.0 | 112.0 | 80.0 | 12.0 | 648/145670 | 680.0 | 37.8 |
FAQ
Q: Will the chain damage tobacco shreds and leaves?
A: Smooth polished surface avoids scratching tobacco materials.
Q: Does the chain meet food hygiene requirements for tobacco workshops?
A: Stainless steel material complies with tobacco production standards.
Q:What is your advantages?
A: 1. Manufacturer,the most competitive price and good quality.
2. Perfect technical engineers give you the best support.
3. OEM is available.
4. Rich stock and quick delivery.
Q:How long is your delivery time and shipment?
A: 1.Sample Lead-times: generally 10 workdays.
2.Production Lead-times: 20-40 workdays after getting your deposit.
